X 8

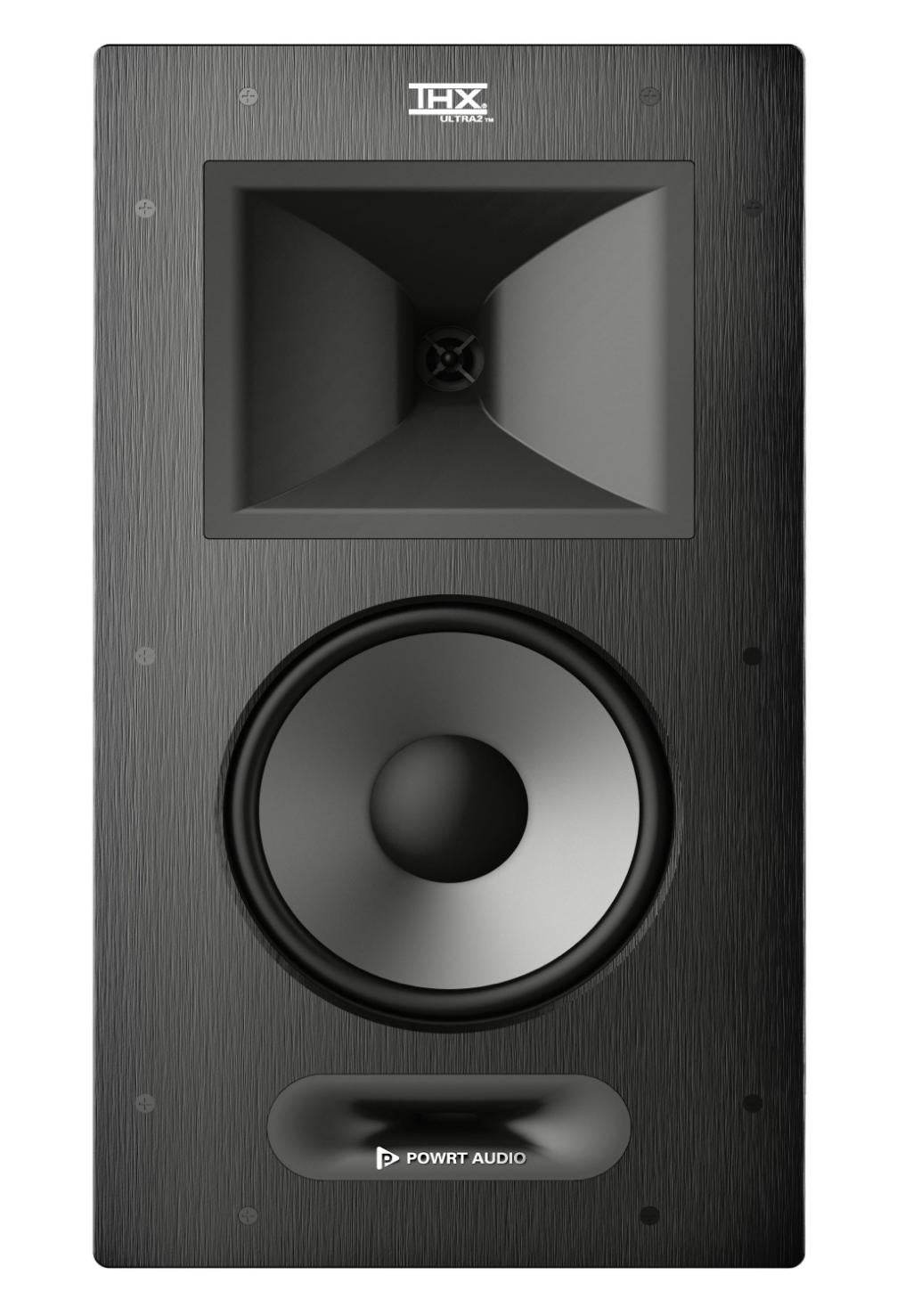

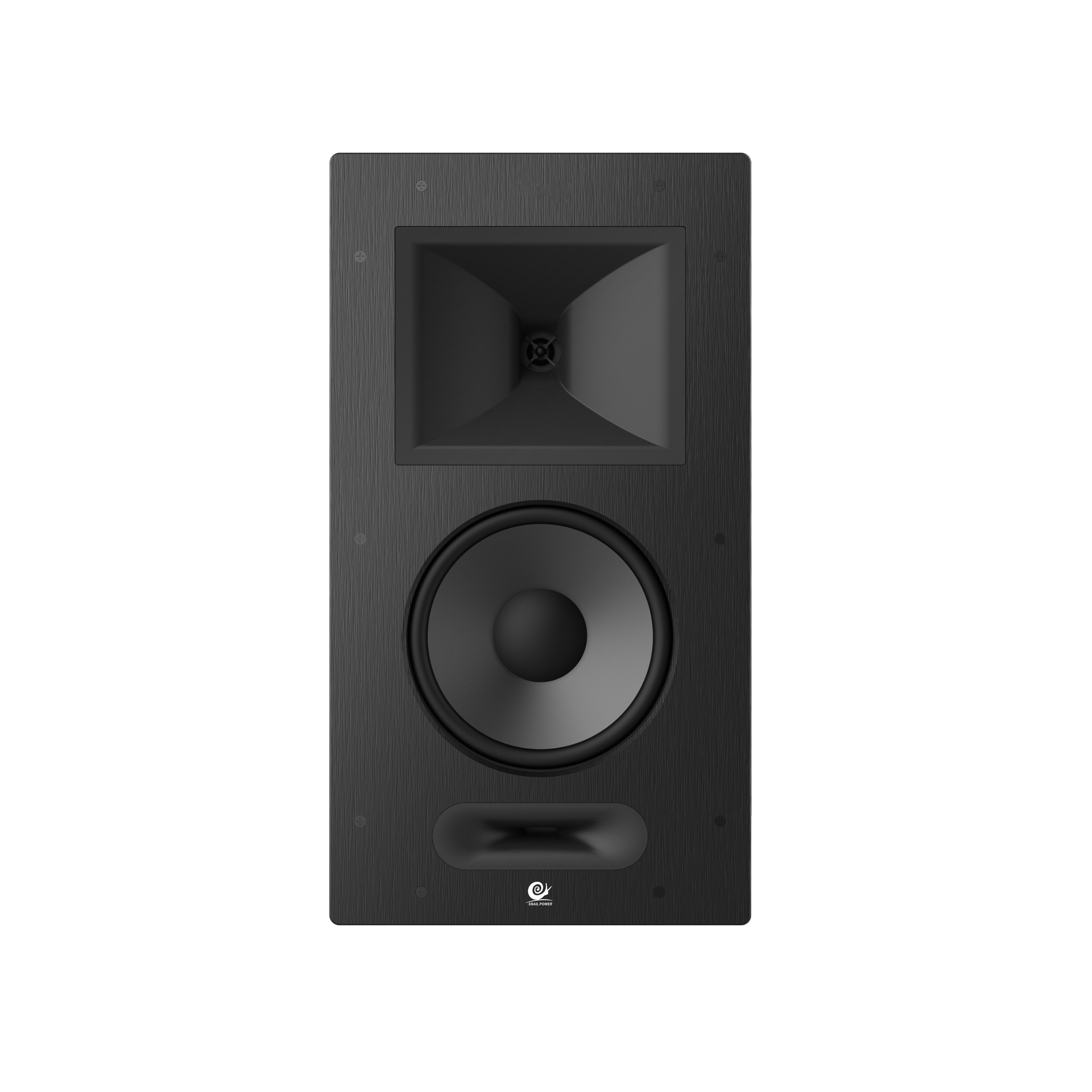

The X8 is a professional-grade in-wall speaker engineered for powerful, room-filling sound in home cinemas and commercial entertainment spaces. Featuring an 8-inch aluminum bass driver and a titanium compression tweeter with a Tractrix horn, it delivers high output, wide dispersion, and exceptional clarity. With high sensitivity, strong power handling, and patented inverted bass technology, the X8 offers dynamic performance and controlled low frequencies, all integrated seamlessly into walls with a sleek aluminum paintable grill for a clean, architectural look.

Speaker Configuration

• 1 × 8” Aluminum Cone Woofer

• 1 × 1” Titanium Diaphragm Compression Tweeter (Spherical Top)

Horn Design

• Tractrix Horn

• Coverage: 110° (H) × 90° (V)

Performance

• Frequency Response: 40 Hz – 20 kHz (±3 dB)

• Power Handling (Continuous / Peak): 150 W / 600 W

• Sensitivity: 91 dB (1 W / 1 m)

• Maximum SPL (@1 m): 116 dB

• Nominal Impedance: 8 Ω

Technology

• SNAIL Inverted Bass Technology

• Horn-Loaded Compression Driver Design

Dimensions & Installation

• Product Dimensions (W × H × D): 526 × 290 × 103 mm

• Cut-Out Size: 490 × 254 mm

• Installation Depth: 98 mm

• Net Weight: 8.5 kg

Finish

• Aluminum Front Panel

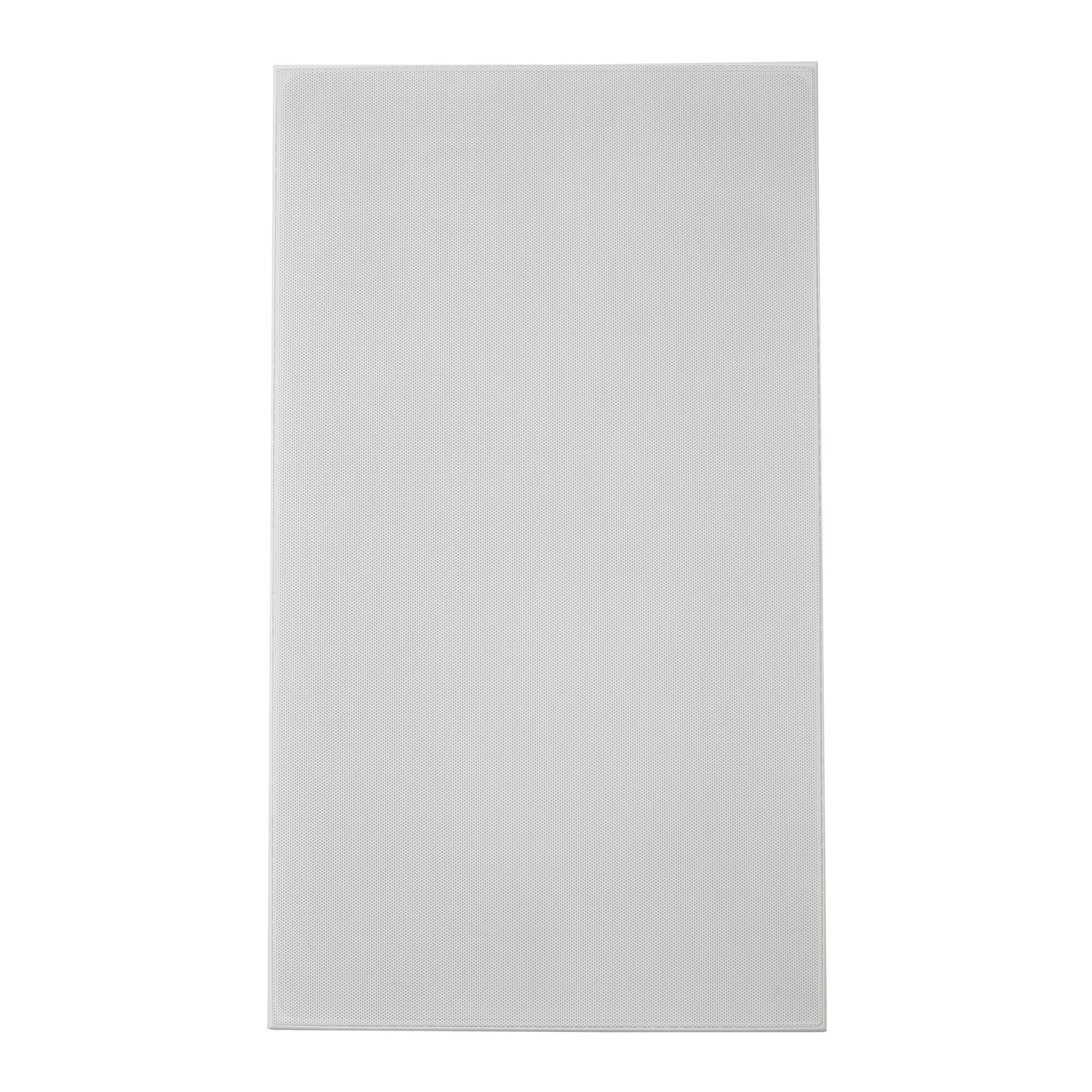

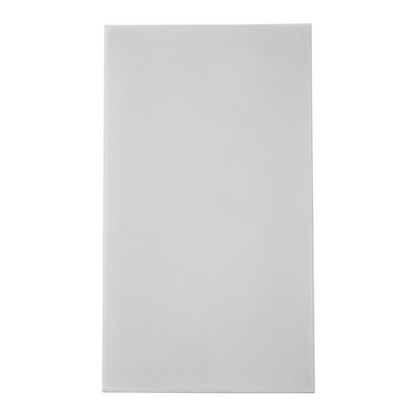

• White Metal Mesh Grille
